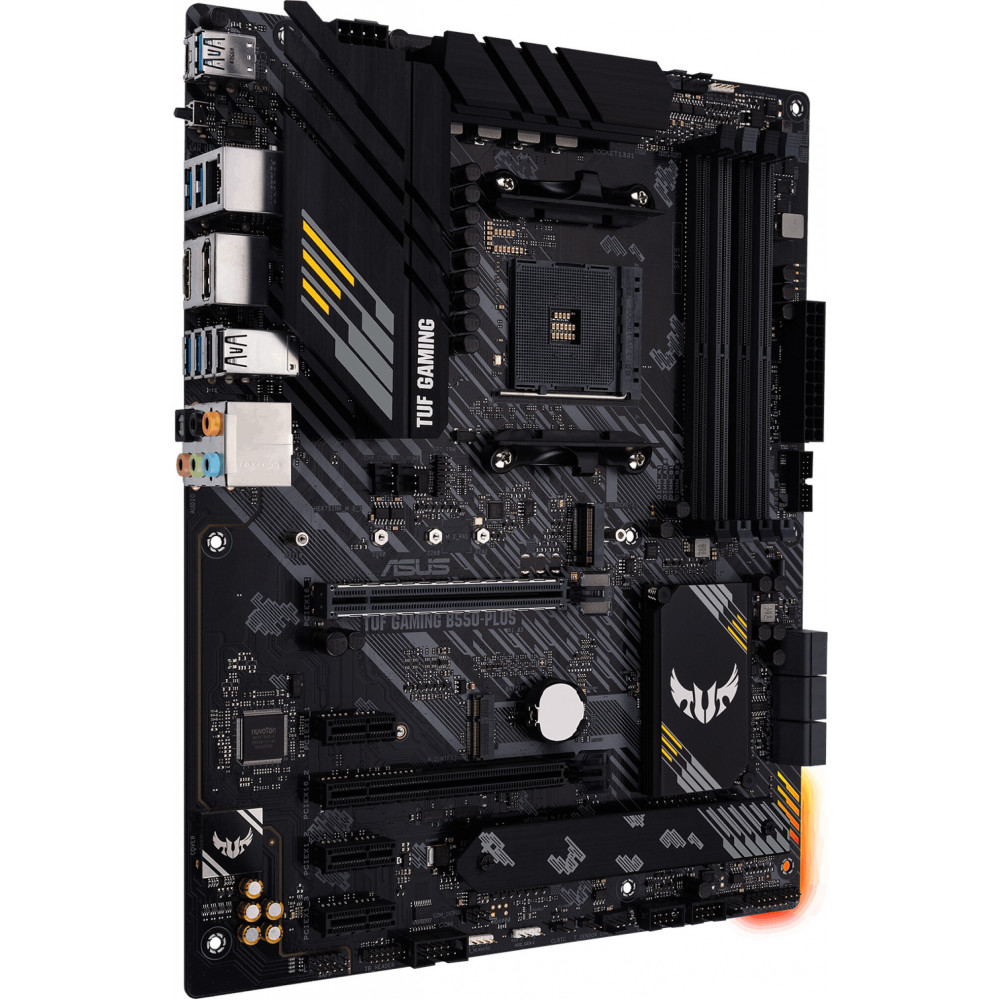

Motherboard Asus TUF Gaming B550-Plus

90MB14G0-M0EAY0
4718017749435
Novo

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support.

PVP:
139,95 €

CPU

Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *

* Refer to www.asus.com for CPU support list



Chipset

AMD B550



Memory

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Next Generation AMD Ryzen PRO Processors

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).



Graphic

1 x DisplayPort 1.4 **

1 x HDMI 2.1(4K@60HZ)

*Graphics specifications may vary between CPU types.

**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.



Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology



Expansion Slots

3rd Gen AMD Ryzen™ Processors

1 x PCIe 4.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode)

3 x PCIe 3.0 x1 *1

* Support PCIe bifurcation for RAID on CPU function.



Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

3rd Gen AMD Ryzen™ Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

6 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10



LAN

Realtek RTL8125B 2.5Gb Ethernet

TUF LANGuard

Wireless Data Network

M.2 slot only (Key E) (Support PCIe interface)*

*Wi-Fi module is sold separately.



Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Optical S/PDIF out port(s) at back panel

- Audio cover

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

- Unique de-pop circuit



USB Ports

Rear USB Port ( Total 8 )

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s)( x Type-A)

2 x USB 2.0 port(s)( x Type-A)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

4 x USB 2.0 port(s)(4 x Type-A)

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- AI Noise Cancelling Microphone

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS TUF PROTECTION

- ASUS DIGI+ VRM (Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Procool

AURA Sync

- Standard RGB headers

- Addressable Gen 2 RGB header



Back I/O Ports

1 x DisplayPort

1 x HDMI

1 x LAN (2.5G) port(s)

2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

4 x USB 3.2 Gen 1 (blue) Type-A

2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x BIOS FlashBack™ Button(s)



Internal I/O Ports

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 with E key for Wi-Fi module

1 x SPI TPM header

6 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header



Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x TUF Gaming Sticker

1 x TUF Certification card(s)

1 x M.2 SSD screw package(s)

1 x M.2 Rubber Package(s)



BIOS

256 Mb Flash ROM, UEFI AMI BIOS



Manageability

WOL by PXE



Operating System

Windows® 10 64-bit



Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )



Note

*1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.

*2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

90MB14G0-M0EAY0

Ficha informativa

Componente para
PC
Fabricante do processador
AMD
Estrutura da motherboard
ATX
Família de chipset da placa-mãe
AMD
Motherboard chipset
AMD B550
Tipo de ranhuras de memória
DIMM
Tipos de memórias compatíveis
DDR4-SDRAM
Socket do processador
Socket AM4
