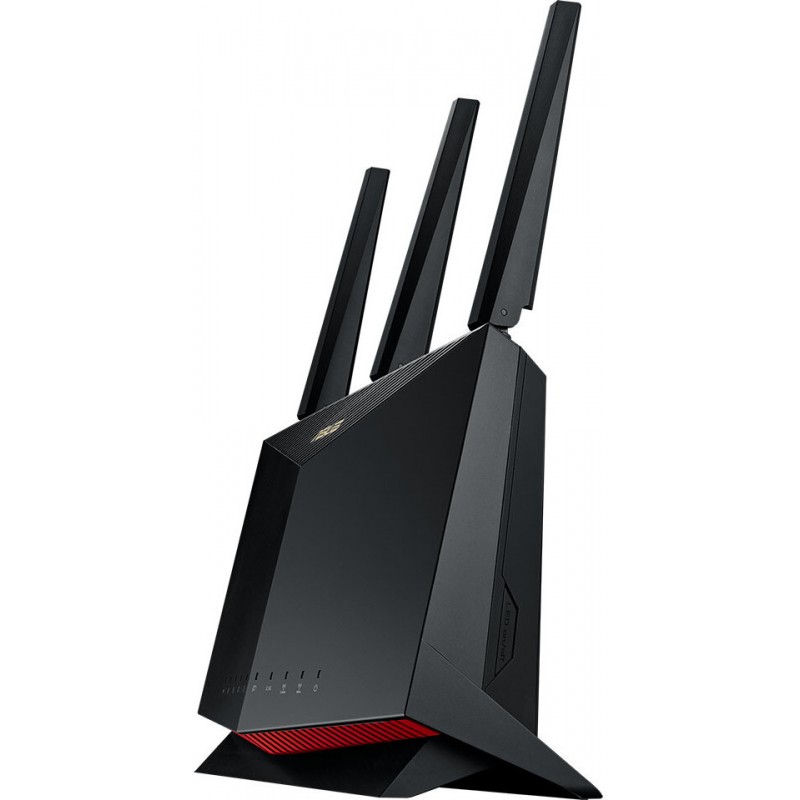

ASUS RT-AX86U AX5700 Dual Band WiFi 6 Gaming Router

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6

Product Segment
AX5700 ultimate AX performance

Coverage
Very large homes

Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 450 Mbps
802.11n (1024 QAM) : up to 750 Mbps
802.11ac (1024 QAM) : up to 4333 Mbps
802.11ax (2.4GHz) : up to 861 Mbps
802.11ax (5GHz) : up to 4804 Mbps

Antenna
External antenna x 3
Internal PCB antenna x 1

Transmit/Receive
2.4 GHz 3 x 3
5 GHz 4 x 4

Processor
1.8 GHz quad-core processor

Memory
256 MB Flash
1 GB RAM

Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency
2.4 GHz / 5 GHz

Encryption
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall & Access Control
Firewall: SPI intrusion detection, DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter

Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
IPSec server
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client

WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Utilities
Router setup wizard; Firmware restoration; Device discovary

Ports
RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1
USB 3.2 Gen 1 x 2

Features
Router app
Link Aggregation
- 802.3ad
MU-MIMO
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : PPTP Server, OpenVPN Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image :
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist
OFDMA
Beamforming
NVIDIA Geforce Now Cloud Gaming Optimization
WAN Aggregation

Button
WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicator
Power x 1
Wi-Fi x 2
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current
DC Output : 19.5 V with max. 2.31 A current

OS Support
Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8

Dimensions
242 x 100 x 325 mm (WxDxH) with antenna
242 x 100 x 164 mm (WxDxH) without antenna

Weight
814.5 g
Package Content
RT-AX86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Operation mode
Wireless router mode
Access point mode
Media bridge mode
